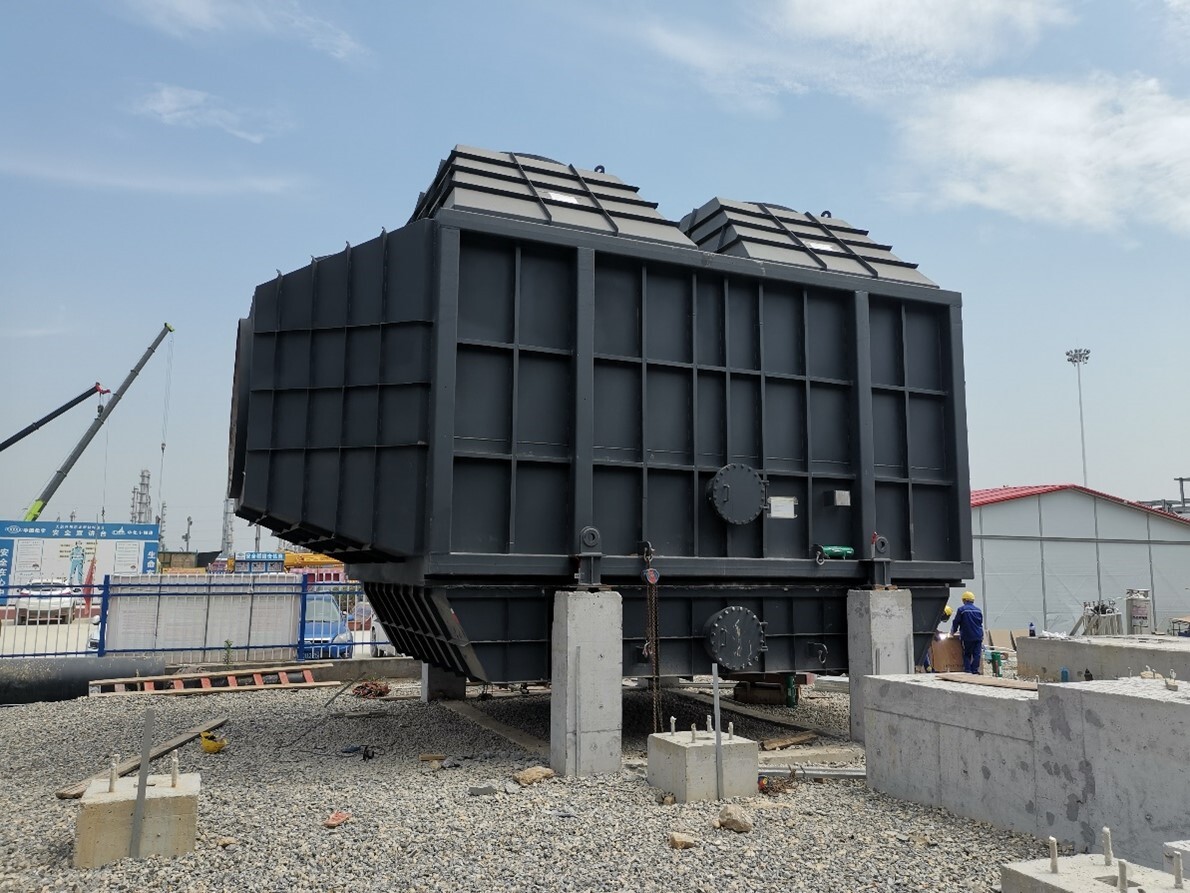

Product Name: High-Temperature Plate Flue Gas Heat Exchanger (Patent Equipment)

Technical Specifications:

① Modularized Scalable Design

• Field-assembled core modules enabling jumbo-scale deployment

② Temperature-Zoned Material Optimization

• Segmented high/low-temperature modules
• Enhanced corrosion resistance in low-temp sections (pH 1.5~12)

③ Extreme-Temperature Capability

• Design temperature: ≥550°C
• Materials: 304H stainless steel / Superior grades (Inconel 625 optional)

Application Scenarios:

Revolutionizing catalytic oxidation systems for chemical plant flue gas treatment – a national environmental priority. This modular-engineered welded plate heat exchanger delivers:

• 30% cost reduction vs. traditional shell-and-tube units
• 50% shorter lead times through standardized fabrication
• Field-maintainable modules minimizing downtime

Core function: Enables high-efficiency heat recovery between raw and treated flue gas streams.

Suitable For:

• Raw waste gas ↔ Treated flue gas heat exchange
• High-temperature flue gas ↔ Combustion air preheating
• Energy recovery applications with gas streams ≥300°C
