Product Name：Internal Plate Heat Exchanger for Oxidized Liquid Concentrator Column (Patent Equipment)

Project Context:

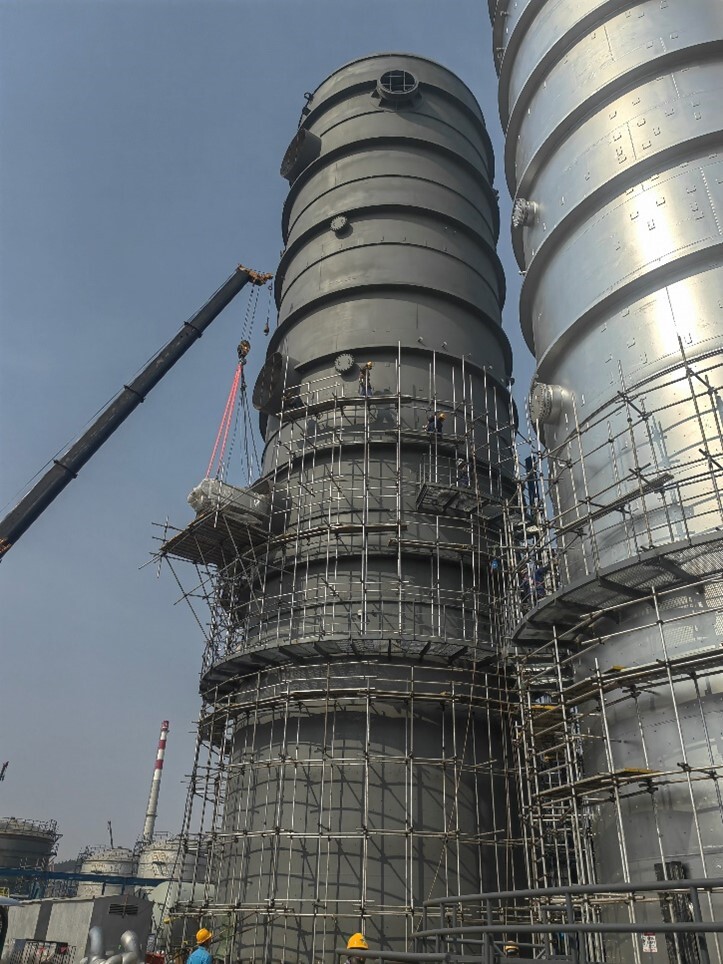

Integrated into Oxidized Liquid Concentrator Column (1102-C-105) of the 300,000-tpy CHPPO Unit in LEAPGREEN (Shandong) New Materials Co., Ltd.'s Integrated New Energy & Biodegradable Materials Project, 2025

Technical Specifications:

① High Pressure Differential Withstand Capability:

• Differential pressure across sides ≥15 bar

② Ultra-Low Pressure Drop Operation:

• Dual-side low pressure drop reduces energy consumption
•
  Interconnected side pressure drop within column as low as 0.05 kPa (specific conditions)

③ Unprecedented Compact Scaling:

• Total installed module surface area per column: 12,000 m²

④ Extended Operational Envelope:

• Design temperature: >200°C
• Compatible with negative-pressure to vacuum operation

Application Scenarios:

A highly integrated device featuring high-pressure resistance, structural stability, superior heat transfer efficiency, compact footprint, and modular deployability within distillation/concentrator columns. Integrates four critical functions:

• Reactor heat removal
• Concentration evaporation
• Distillation
• Vapor-phase condensation

Purpose: Enables energy-integrated multi-stage coupled condensation/evaporation processes.

Suitable For:

• Partial/Total Condensation
• Partial/Total Evaporation
• Condensation-Evaporation Coupled Heat Exchange
